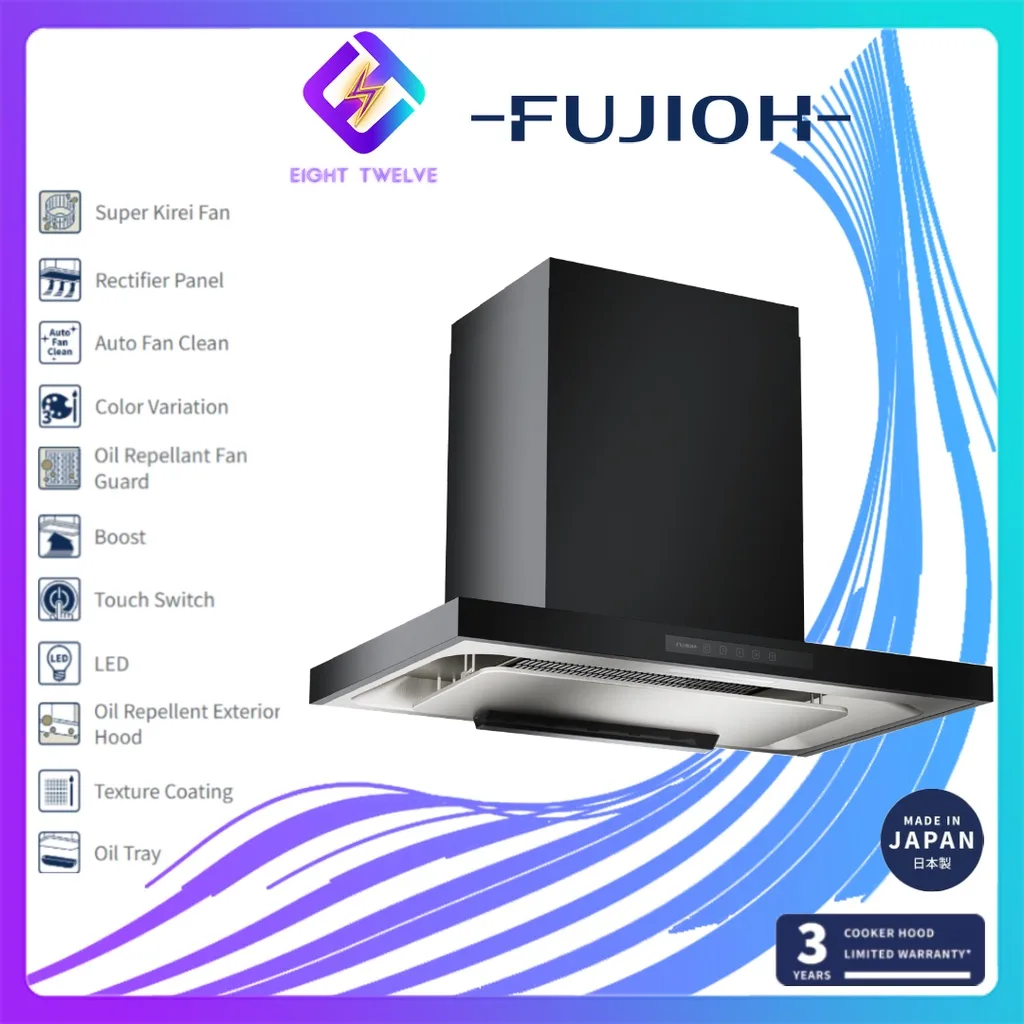

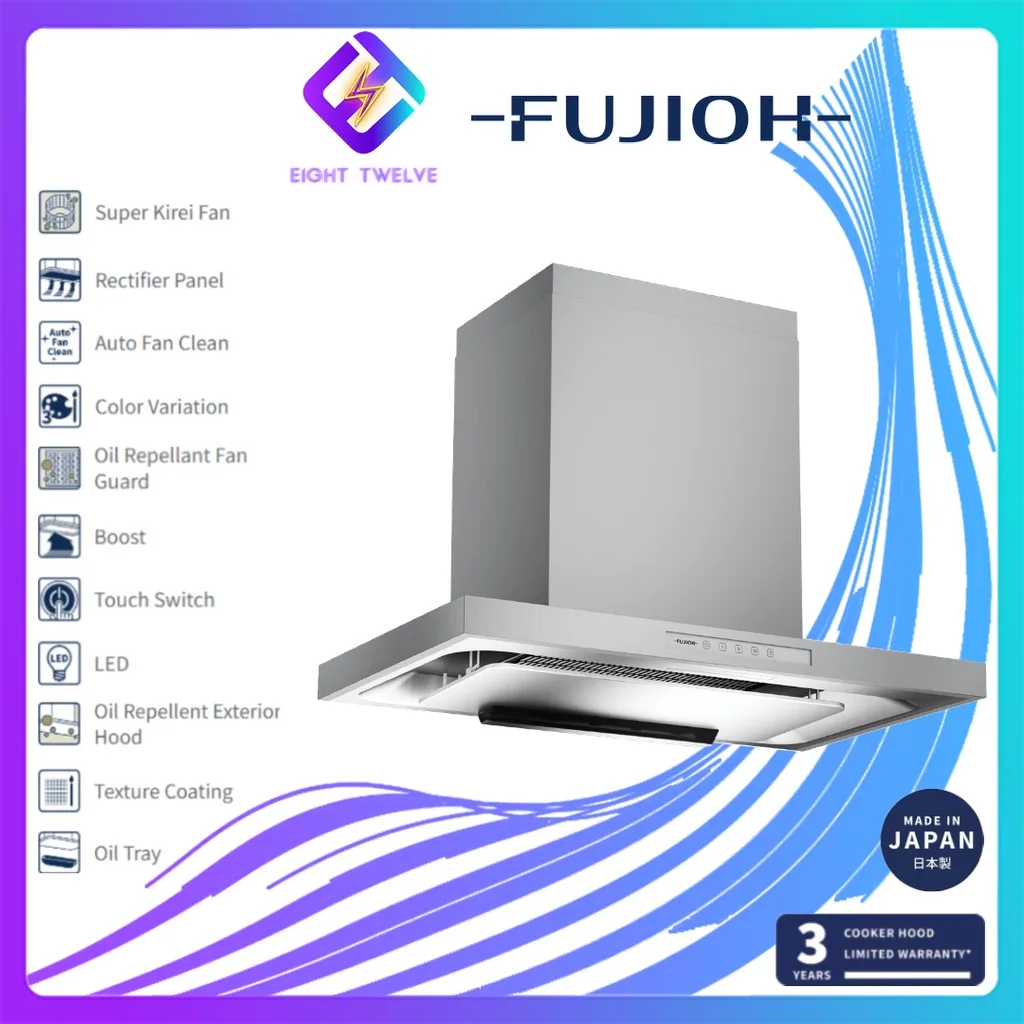

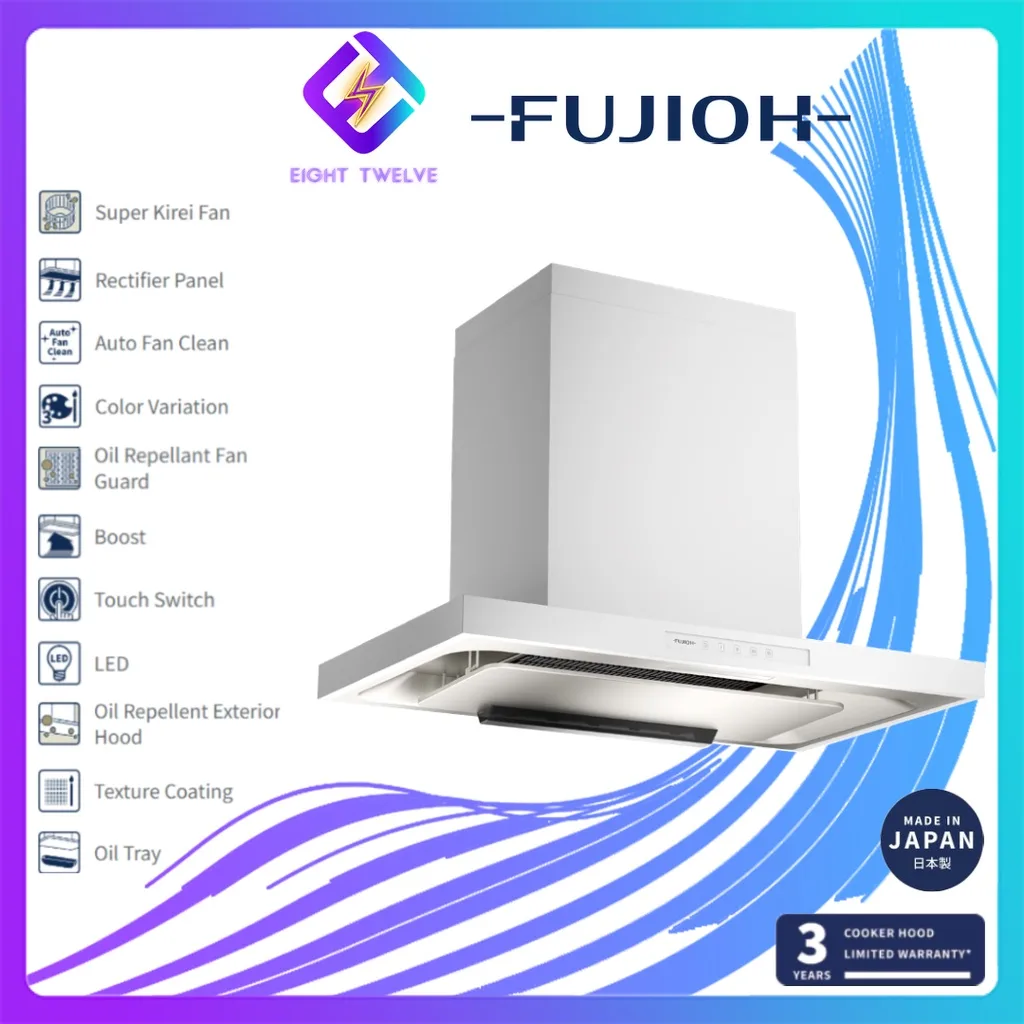

Fujioh Built In Chimney Cooker Hood & Hob Variant

Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts

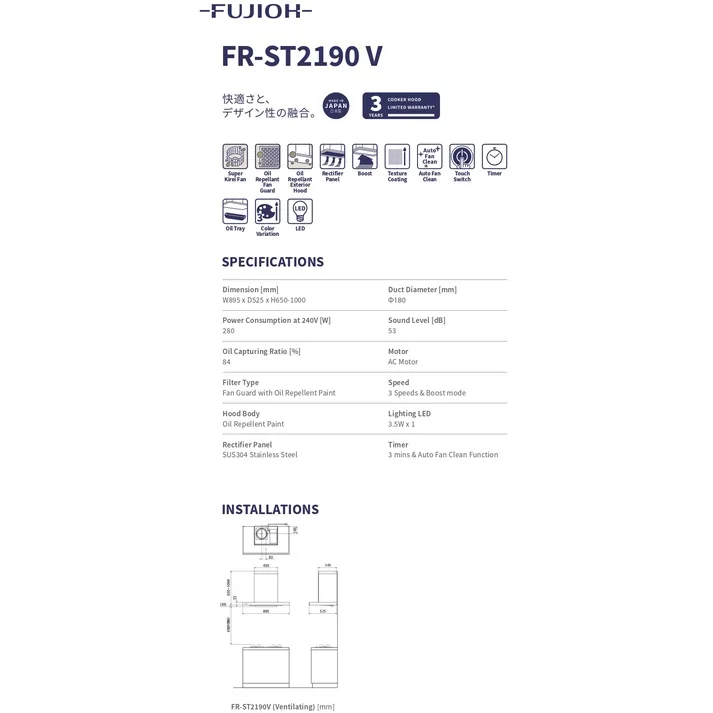

Models - FR-ST2190VType - Ventilation
Material(Body) - Galvanized Steel
Dimensions [mm] - W895 x D525 x H650~1000
Weight [kg] - 31
Power Consumption [W] 220/240V - High 260/280; Boost 295/350
Voltage [V/Hz] - 220-240/50
Duct Diameter [mm] - 180
Sound Level [dB] - 220/240V
High 52/53 ; Boost 55/56
Oil Capturing Ratio [%] - 84
Switch - Touch Switch
Speed - 4 Speeds (Low, Medium, High & Boost)
Hood Body - Oil Repellent Coating
Fan - Super Kirei Coating
Rectifier Panel - SUS304 Stainless Steel
Fan Guard - Oil Repellent Coating
Motor - AC Motor
Lighting - LED 3.5W x 1

Gas Hob FH-GS2020 SVGL | FH-GS2030 SVGL
Warranty Coverage - 1-year warranty for parts
Surface Type - Toughened Black Glass
Dimensions - W730 x D420 x H85
Ignition Type - Battery Operated(Size D 1.5V)
HEATING LOAD L.P. GAS [kW]
Left - 5.0 | 5.0
Centre - 0 | 1
Right - 5.0 | 5.0
All Burners On - 10.0 | 11.0

CUT-OUT DIMENSIONS & REPLACEMENT SIZE [mm]
Cut-out Dimensions - W650 x D350 | W685 x D405
Front Allowance & Rear Allowance - FA116 x RA134 | FA96 x RA99
Replacement Size - W(650–655) x D(350–355) | W(685–690) x D(405–410)
Height - 85

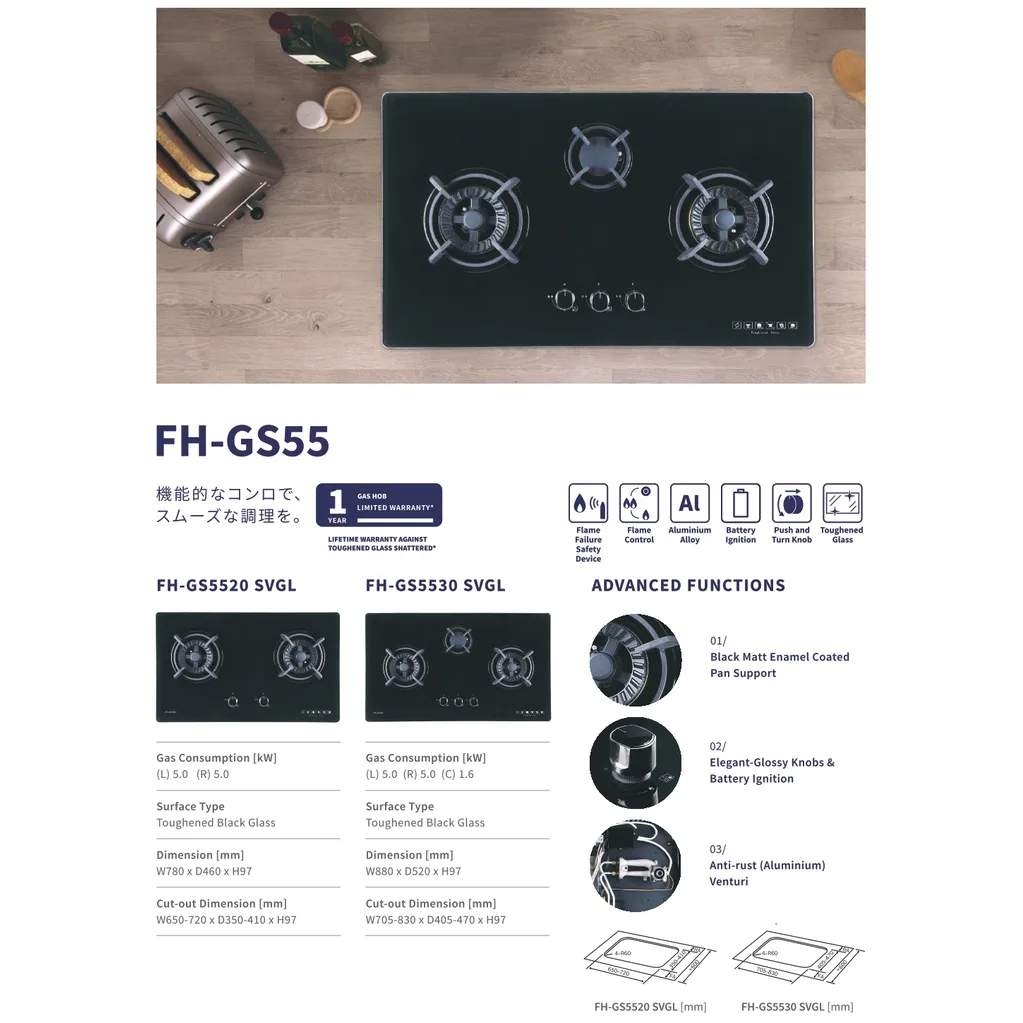

Gas Hob FH-GS5520 SVGL | FH-GS5530 SVGL
Warranty Coverage - 1-year warranty for parts
Surface Type - Toughened Black Glass
Dimensions - W780 x D460 x H100 | W880 x D520 x H100
Ignition Type - Battery Operated(Size D 1.5V)
HEATING LOAD L.P. GAS [kW]
Left - 5.0 | 5.0
Centre - 0 | 1.6
Right - 5.0 | 5.0
All Burners On - 10.0 | 11.6

CUT-OUT DIMENSIONS & REPLACEMENT SIZE [mm]
Cut-out Dimensions - W650 x D350 | W705 x D405
Front Allowance & Rear Allowance - FA55 x RA58 | FA56 x RA58
Replacement Size - W(650–720) x D(350–410) | W(705–830) x D(405–470)
Height - 100

Hybrid Hob FH-IC6020
Warranty Coverage - 1-year warranty for parts
Boost - No
Touch Control - Yes
Timer - 180 min
Power Setting - 9 step
Child Safety Lock - Yes
Residual Heat Indicator - Yes
Auto Switch Off - Yes
Pan Sensor - Yes (for induction zone only)
Schott Glass - Yes
Type - Induction 1 zone + Ceramic 1 zone
Material - SCHOTT CERAN®
Colour - Black
Dimensions [mm] - W700 x D430 x H82
Cut Size [mm] - W670 x D400
Weight [kg] - 7.7
Voltage [V/Hz] - 220-240V 50/60Hz
Power [kW] - (1.4~1.8) × 2 = max 3.2
Ampere required (Based on 230V) - 15
Zone Size [mm] - Induction 180 / Ceramic 200
Installation Method - Built-in or Free Standing on Table Top (equipped with base legs)
