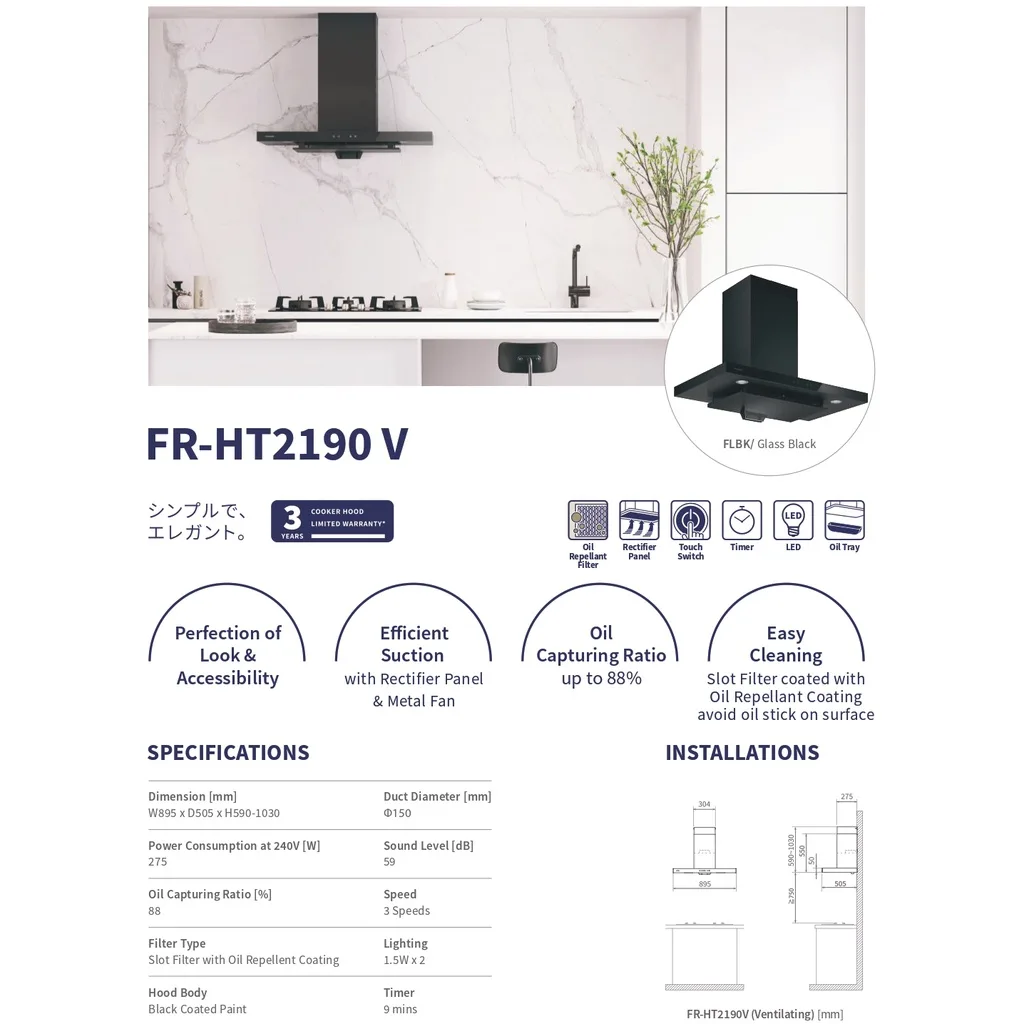

Fujioh Built In Chimney Cooker Hood With Glass Panel & Hob Variant

Models - FR-HT2190V
Warranty Coverage - 3-year warranty for motor and 1-year warranty for other parts
Type - Ventilation
Dimensions [mm] - W895 x D505 x H590~1030
Weight [kg] - 18.5
Power Consumption [W](220/230/240V) - 244/260/275
Voltage [V/Hz] - 220,230,240/50
Duct Diameter [mm] - 150
Sound Level [dB](220/230/240V) - 58/59/59
Oil Capturing Ratio [%] - 88
Switch - Touch Switch
Speed - 3 Speeds
Hood Body - Black Coated Paint
Fan - Metal Fan
Rectifier Panel - Paint
Filter
Slot Filter - Oil Repellent Coating
Motor - AC Motor
Lighting - LED 1.5W x 2
Timer - 9 mins

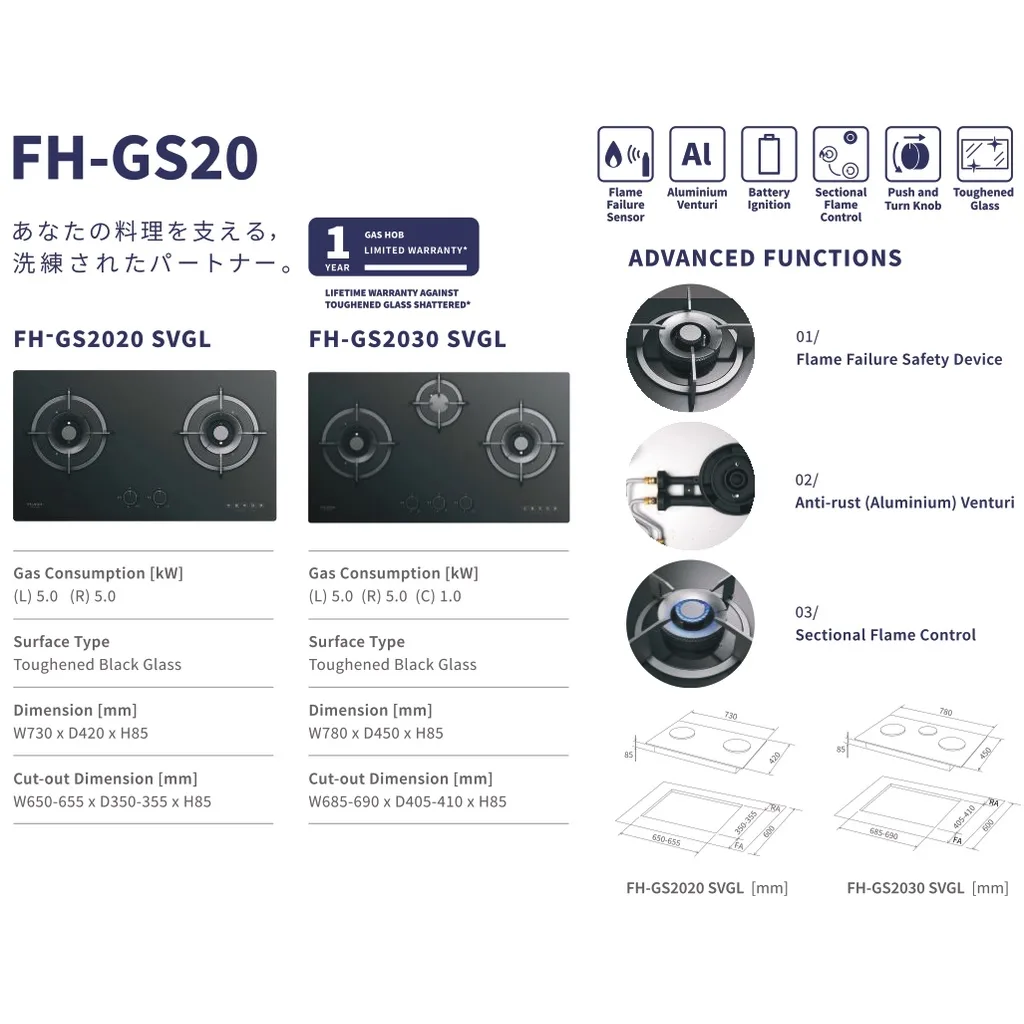

Gas Hob FH-GS2020 SVGL | FH-GS2030 SVGL
Warranty Coverage - 1-year warranty for parts
Surface Type - Toughened Black Glass
Dimensions - W730 x D420 x H85
Ignition Type - Battery Operated(Size D 1.5V)
HEATING LOAD L.P. GAS [kW]
Left - 5.0 | 5.0
Centre - 0 | 1
Right - 5.0 | 5.0
All Burners On - 10.0 | 11.0

CUT-OUT DIMENSIONS & REPLACEMENT SIZE [mm]
Cut-out Dimensions - W650 x D350 | W685 x D405
Front Allowance & Rear Allowance - FA116 x RA134 | FA96 x RA99
Replacement Size - W(650–655) x D(350–355) | W(685–690) x D(405–410)
Height - 85

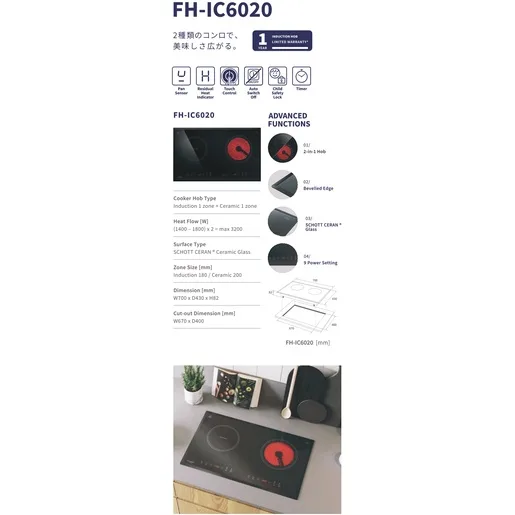

Hybrid Hob FH-IC6020
Warranty Coverage - 1-year warranty for parts
Boost - No
Touch Control - Yes
Timer - 180 min
Power Setting - 9 step
Child Safety Lock - Yes
Residual Heat Indicator - Yes
Auto Switch Off - Yes
Pan Sensor - Yes (for induction zone only)
Schott Glass - Yes
Type - Induction 1 zone + Ceramic 1 zone
Material - SCHOTT CERAN®
Colour - Black
Dimensions [mm] - W700 x D430 x H82
Cut Size [mm] - W670 x D400
Weight [kg] - 7.7
Voltage [V/Hz] - 220-240V 50/60Hz
Power [kW] - (1.4~1.8) × 2 = max 3.2
Ampere required (Based on 230V) - 15
Zone Size [mm] - Induction 180 / Ceramic 200
Installation Method - Built-in or Free Standing on Table Top (equipped with base legs)
