Joven Storage Water Heater JSH Series | Instant Water Heater

1 Year Gemeral & 5 Years Leakproof Warranty by Joven

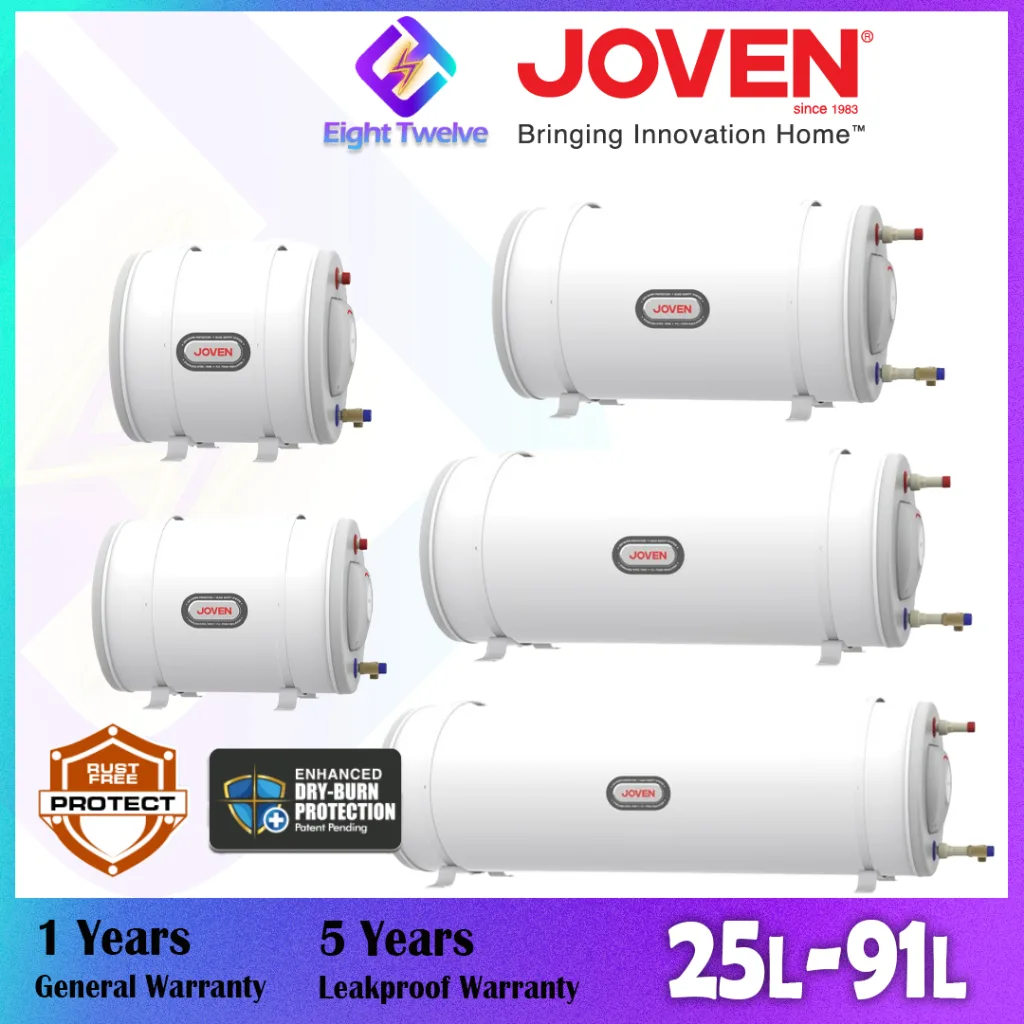

Storage Water Heater

Innovative Features

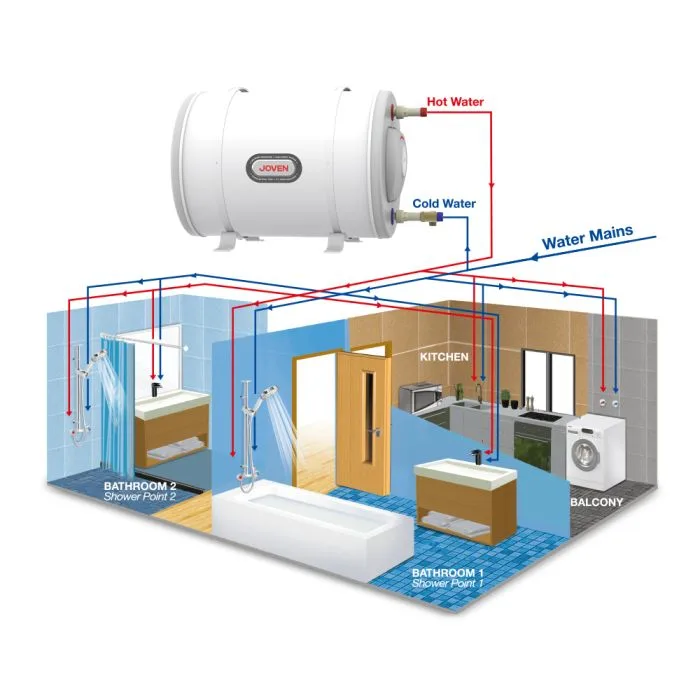

Centralised Multi-point System with Enhanced Dry-Burn protection
Horizontal Mounting Position
Hot water up to 70°C
High quality Incoloy Heating Element
Premium Grade Stainless Steel
High density CFC-Free Polyurethane Insulation Foam for durability and Long Lasting Heat
Antibacterial Heating Technology

Safety Features
Enhanced Dry-Burn Protection
Thermostat with Thermal cut-off
Pressure Relief and Drain Valve
Isolation barrier (for Malaysia only)(JSH50,JSH68 & JSH91 only)

Accessories
Universal Mounting Ring Bracket (Patent Pending)
Expansion Bolts

JSH25
For 1 Sink or 1 standard Shower
For Kitchen Sink - Domestic Low Usage
Capacity 25L ; 5.5 Imp. Gallons
Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
Time Taken To Heat Max 70°C
20 Mins ( 1st Heat Up From Cold Water )
10 Mins ( Subsequent Heat Up )
Recommended Water Pressure : 1 – 4 Bar
Dimensions (W * H * L) : 381 x 405 x 457 mm
Approx. Weight - Empty : 12 kg ; Full : 37 kg

JSH35
For 1 standard Shower and 1 Wash Basin / 1 Rainshower 6”
For Kitchen Sink - Domestic Medium Usage
Capacity 35L ; 7.74 Imp. Gallons
Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
Time Taken To Heat Max 70°C
30 Mins ( 1st Heat Up From Cold Water )
15 Mins ( Subsequent Heat Up )
Recommended Water Pressure : 1 – 4 Bar
Dimensions (W * H * L) : 381 x 405 x 576 mm
Approx. Weight - Empty : 14 kg ; Full : 49 kg

JSH50
For 2 standard Shower / 1 Rainshower 8” / 1 Rainshower 6” or 1 Wash Basin
For Kitchen Sink - Commercial Low Usage
Capacity 50L ; 11.0 Imp. Gallons
Power rating 3.0kw; 240V
Time Taken To Heat Max 70°C
45 Mins ( 1st Heat Up From Cold Water )
22.5 Mins ( Subsequent Heat Up )
Recommended Water Pressure : 1 – 4 Bar
Dimensions (W * H * L) : 381 x 405 x 810 mm
Approx. Weight - Empty : 17 kg ; Full : 67 kg

JSH68
For 1 Long Bath or 3 standard Shower / 1 Rainshower 10” or 2 Rainshower 6”
For Kitchen - Commercial Medium Usage
Capacity 68L ; 15.0 Imp. Gallons
Power rating 3.0kw; 240V
Time Taken To Heat Max 70°C
60 Mins ( 1st Heat Up From Cold Water )
30 Mins ( Subsequent Heat Up )
Recommended Water Pressure : 1 – 4 Bar
Dimensions (W * H * L) : 381 x 405 x 1020 mm
Approx. Weight - Empty : 20 kg ; Full : 88 kg

JSH91
For 1 Jacuzzi or 1 Washing Machine / 1 Long Bath and 1 Normal Shower / 1 Rainshower 10” and 1 Rainshower 6” or 1 Rainshower 12”
For Kitchen Sink - Commercial High Usage
Capacity 91L ; 20.0 Imp. Gallons
Power rating 3.0kw; 240V
Time Taken To Heat Max 70°C
80 Mins ( 1st Heat Up From Cold Water )
40 Mins ( Subsequent Heat Up )
Recommended Water Pressure : 1 – 4 Bar
Dimensions (W * H * L) : 381 x 405 x 1286 mm
Approx. Weight - Empty : 25 kg ; Full : 116 kg
